Product Code: PP157C

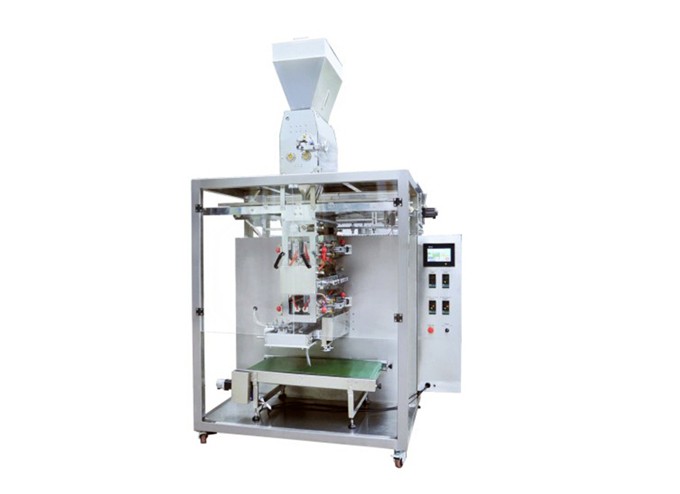

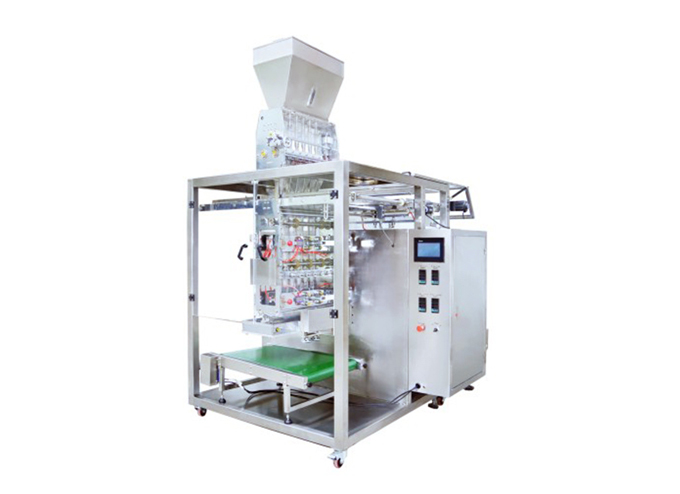

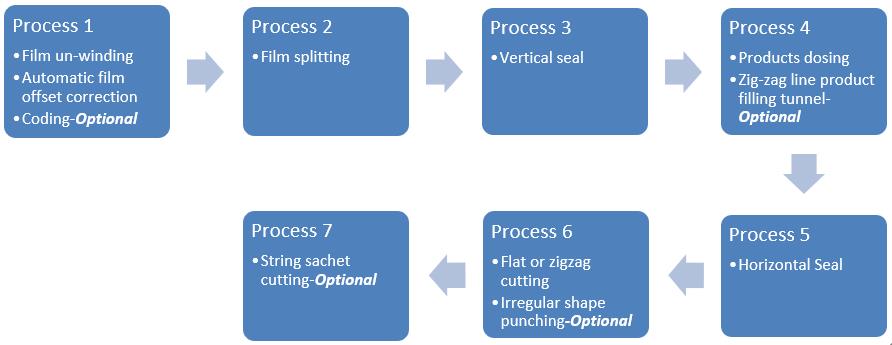

This machine is applicable for dosing granule products and sealing in form of sachet, with 4 side sealing style, include the sachet forming, product dosing, filling and sachet sealing processes, in different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.
This machine is applicable for dosing granule products and sealing in form of sachet, with 4 side sealing style, include the sachet forming, product dosing, filling and sachet sealing processes, in different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.
Standard Features

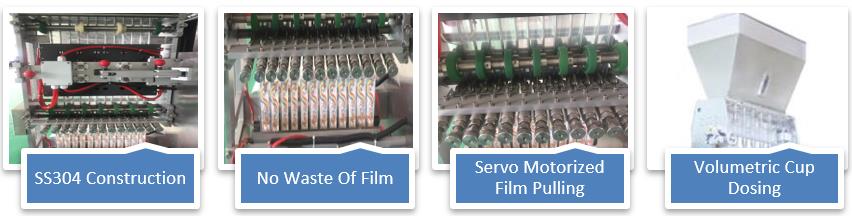

• Mainly stainless-steel 304 construction
• Stainless-steel 304 for product touching parts

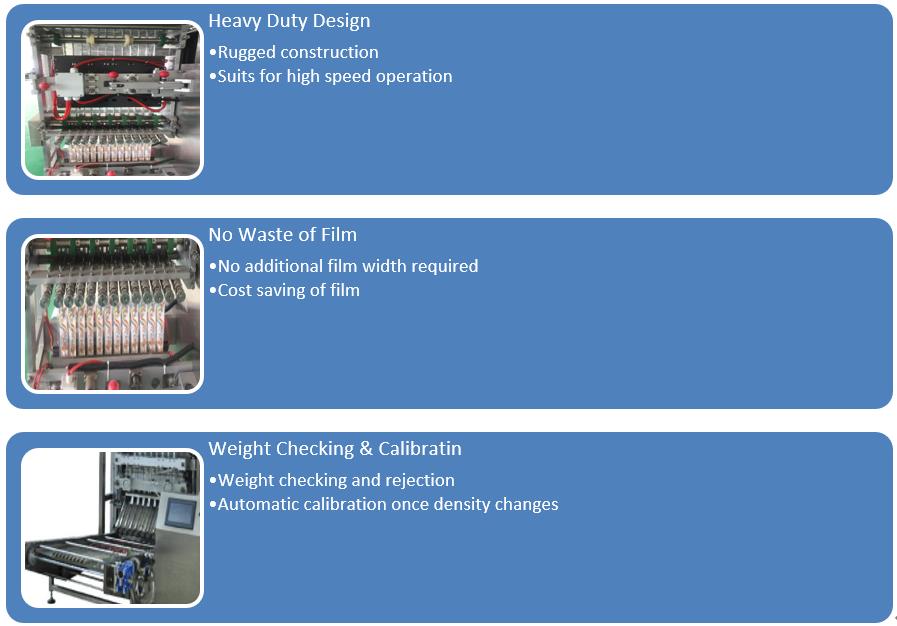

• No waste of film design, no reserved film edge required
• PLC & Touch screen HMI control
• Servo motorized film pulling configuration
• Pneumatic piston pumps dosing for each lane with manual dosing range adjustment
• Intelligent PID temperature controller
• Door open and machine stop interlock
• No packaging film and machine stop interlock
Optional Features
• Stainless Steel 316 for product touching parts
• Sealing pattern
• Flat or Zigzag cutting off
• Round and other irregular shape cutting off
• String sachets
• Tear notch
• Embossing, ribbon, inkjet or laser coding
• Dual products dosing with double layer tube
• Servo motorized pumps
• CIP connectable and/or double jacket heat insulation hopper

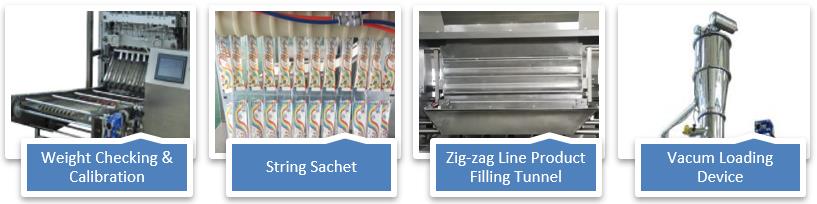

• Grouping conveyor with/without sachet weight checking, rejecting and target weight calibration
• Sachet counting system
• Cartoning or bagging system
| Type 4W-xxx | 480SK | 680SK | 880SK | 1080SK |
| Dosing Method | Volumetric Cup | Volumetric Cup | Volumetric Cup | Volumetric Cup |
| Packaging Speed | 35-45 sachets/min/lane | 35-45 sachets /min/lane | 35-45 sachets /min/lane | 35-45 sachets /min/lane |
| Max film width | 480 mm | 680 mm | 880 mm | 1080mm |
| Lanes | 3-7 lines | 5-12 lines | 5-14 lines | 5-14 lines |
| Filling Accuracy | +/- 1-2% | +/- 1-2% | +/- 1-2% | +/- 1-2% |
| Filling Range | 1-50 g | 1-50 g | 1-50 g | 1-50 g |
| App Air Supply | 0.3 CBM/min, 0.6 Mpa | 0.4 CBM/min, 0.6 Mpa | 0.6 CBM/min, 0.6 Mpa | 0.85 CBM/min, 0.6 Mpa |
| Power Consumption | 2.7 kw | 3.3 kw | 3.6 kw | 4.2kw |
| Power Supply | 380 V /3 Phases/ 50 Hz | 380 V /3 Phases/ 50 Hz | 380 V /3 Phases/ 50 Hz | 380 V /3 Phases/ 50 Hz |
Note:
1) The speed of packaging subject to the filling volume, size of sachet, characteristic of granule and accuracy requirement
2) The filling accuracy subject to the packaging speed, filling volume and characteristic of granule
Following is the link of video playlist on our Youtube site
VD157A Intermittent Multi lane 4 side sealed sachet form fill seal machine
VD157D Intermittent Multi lane 4 side sealed sachet form fill seal machine+ Juice stick +12 Lanes
If need more information , please contact us at: cs@gloex.com.cn
