Product Code : PP296A

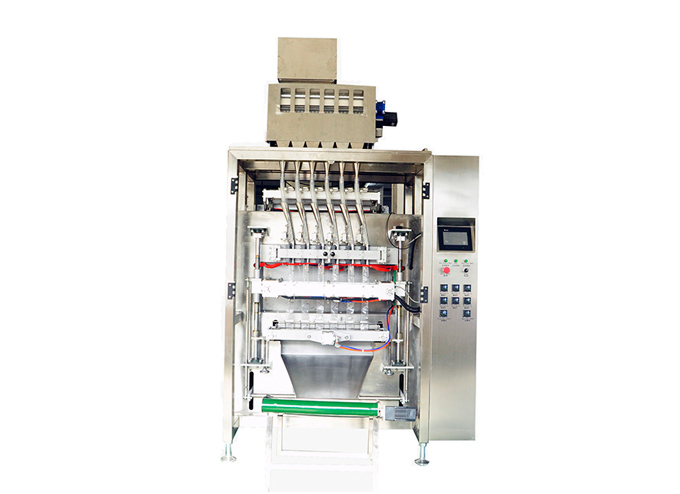

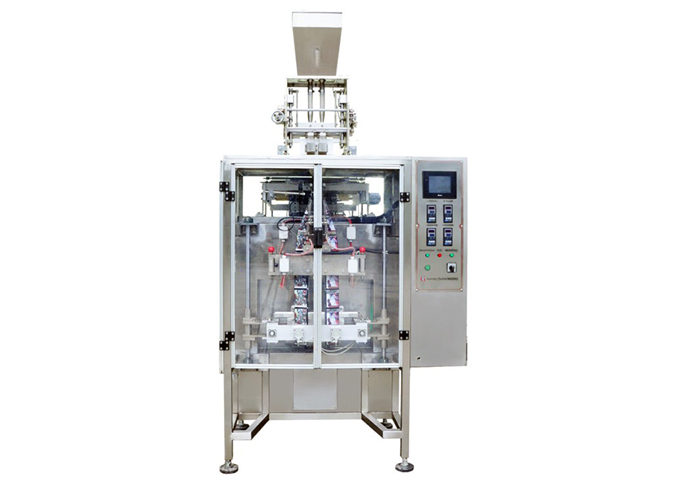

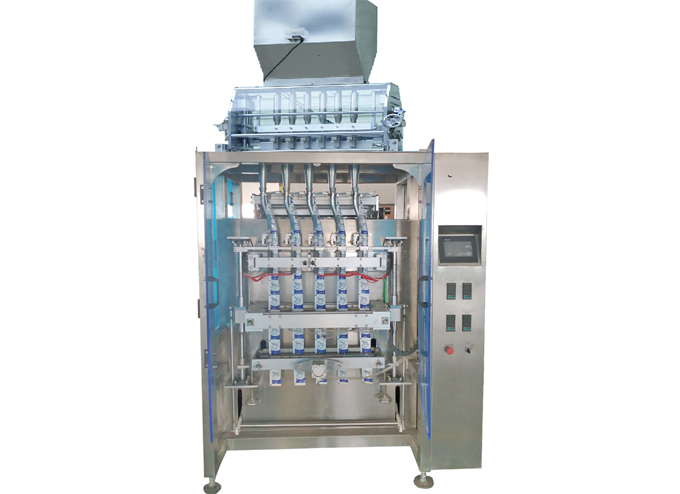

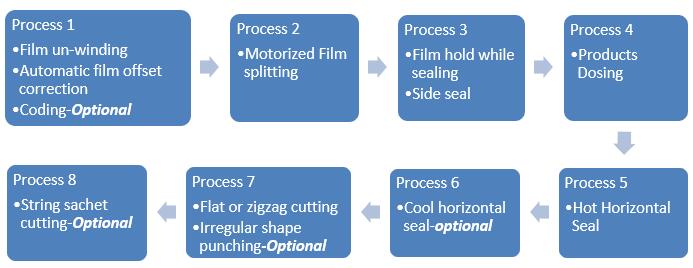

This machine is applicable for dosing granule products and sealing in form of sachet, with 3 side sealed style, include the sachet forming, product dosing, filling and sachet sealing processes, In different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.
By configure with different accessories, suitable for food, cosmetic, medicine packing such as sugar, salt, pepper, and all kinds of granule etc.
This machine is applicable for dosing granule products and sealing in form of sachet, with 3 side sealed style, include the sachet forming, product dosing, filling and sachet sealing processes, In different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.
By configure with different accessories, suitable for food, cosmetic, medicine packing such as sugar, salt, pepper, and all kinds of granule etc.
Standard Features
1) Mainly stainless-steel 304 construction
2) Stainless-steel 304 for product touching parts

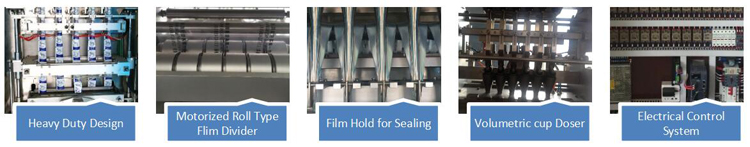

3) Heavy duty design suits for high speed operation
4) No waste of film design, no reserved film edge required
5) Motorized roller type film dividing device
6) PLC & Touch screen HMI control
7) Guided servo motorized film pulling device integrated with horizontal seal
8) Film holds for sealing
9) Volumetric cup dosing for each lane with manual dosing range adjustment
10) Product level visible hopper
11) Intelligent PID temperature controller
12) Door open and machine stop interlock
13) No packaging film and machine stop interlock
Optional Features
1) Stainless Steel 316 for product touching parts
2) Sealing pattern
3) Flat or Zigzag cutting off
4) Round and other irregular shape cutting off
5) String sachet/stick
6) Tear notch
7) Embossing, ribbon, inkjet or laser coding

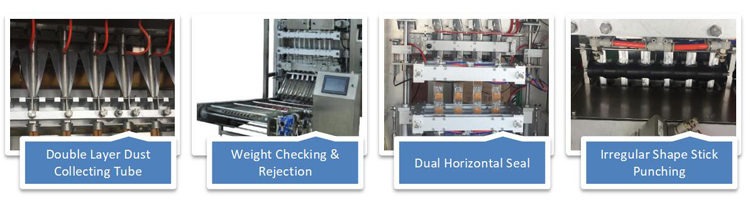

8) Weight checking rejection and calibration
9) Sachet counting systemCartoning or bagging system
| Type 4W-xxx | 280KS | 480KS | 880KS |
| Dosing Method | Volumetric cup | Volumetric cup | Volumetric cup |
| Packaging Speed | 35-60 sticks/min/lane | 35-60 sticks /min/lane | 35-60 sticks /min/lane |
| Max film width | 280 mm | 480 mm | 880 mm |
| Sachet Size-Length | 20-120 mm | 20-120 mm | 20-120 mm |
| Sachet Size-Width | <=120 mm | <=120 mm | <=120 mm |
| Lanes | Customized | Customized | Customized |
| Filling Accuracy | +/- 1-2% | +/- 1-2% | +/- 1-2% |
| Filling Range | 1-100 g | 1-100 g | 1-100 g |
| App Air Supply | 0.3 CBM/min, 0.6 Mpa | 0.4 CBM/min, 0.6 Mpa | 0.6 CBM/min, 0.6 Mpa |
| Power Consumption | 2.7 kw | 3.3 kw | 3.6 kw |
| Power Supply | 380 V /3 Phases/ 50 Hz | 380 V /3 Phases/ 50 Hz | 380 V /3 Phases/ 50 Hz |
Note:
1) The speed of packaging subject to the filling range, size of sachet, characteristic of granule and accuracy requirement.
2) The filling accuracy subject to the packaging speed, filling range and characteristic of granule.
