Product Code: PP114

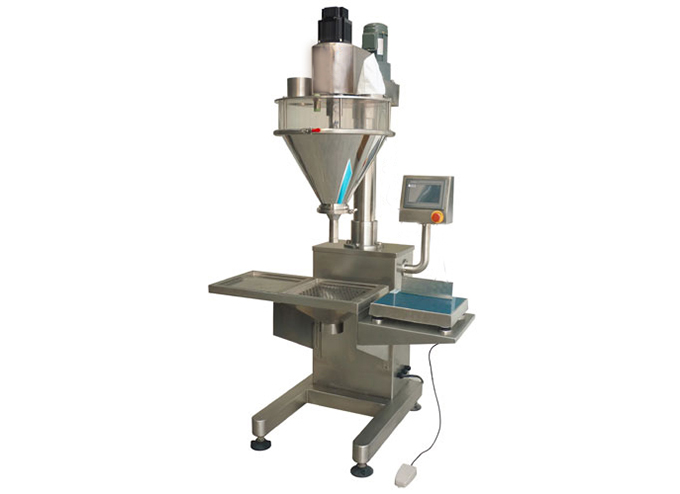

This machine is applicable for packing powder, small granule in form of bag, with different type of sealing, seaming or capping device, is capable to form a production line
This machine is applicable for packing powder, small granule in form of bag, with different type of sealing, seaming or capping device, is capable to form a production line, the detail application description as following table:
| Issue | Application Description |
| Applicable Products | Suitable for powder or small granule dosing and filling. Such as sugar, salt, flour, starch, milk powder, coffee powder, dextrose, powder additive, rice, bean, plastic granule, and other chemical raw materials etc. |
| Applicable Containers | Various type of premade pouch, can, jar or bottle etc. |
Following are the reference style of packaging

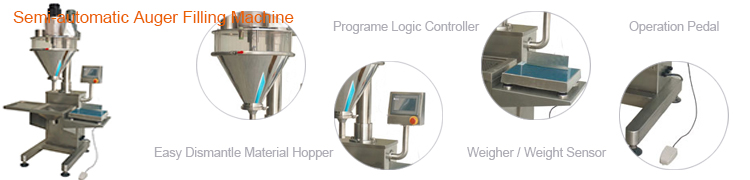

Standard Features
• Suitable for powder or small granule dosing and filling
• PLC &Touch screen HMI control enable easy operation parameter setting up and troubleshooting
• Configure with servo motors to drive dosing auger, to achieve high dosing accuracy and speed
• Unique weight feedback and specific gravity tracking technology, able to ensure the filling accuracy which may result from the changes of gravity
• Quick assembly hopper could be cleaned easily without tools
• Transparent hopper configuration, easy for operation monitoring
• Storing 10 groups of technical parameter for the different products, convenient for product changing
• By simply changing the auger parts, suitable for filling material from super fine powder to granule materials

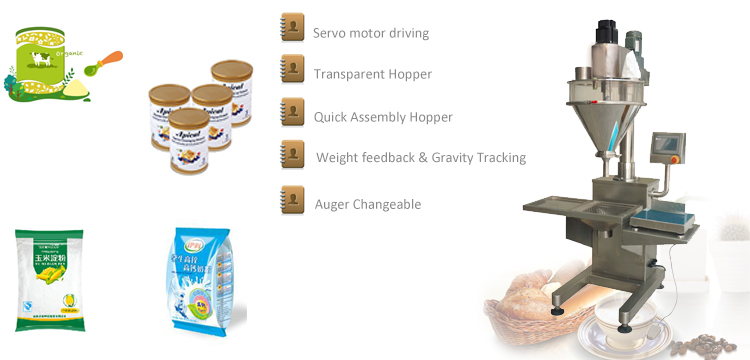

a) Servo motors driving, more accurate dosing, faster speed
b) Transparent hopper, operation visible
c) Quick assembly hopper, easy for cleaning
d) Height adjustable to adapt different container
e) Auger changeable enable different product dosing and filling
f) Unique weight feedback and specific gravity tracking technology
| Catalogue/1D-xxxxx | 1A-321 | 1B-321 |
| Filling Range(g) | 1-500 | 10-5000 |
| Filling Accuracy | 1)<=100g,<=±2%; 2)100 - 500g,<=±1%; | 1)<=100g,<=±2%; 2)100 - 500g,<=±1%; 3)>=500g,<=±0.5% |
| Filling Speed -times/min | 40-120 | 40-120 |
| Hopper Volume(L) | 25-Standard 35-Extra Large | 50-Standard 70-Extra Large |
| Power Requirement | AC208-415V 50/60Hz | AC208-415V 50/60Hz |
| Power Consumption(kW) | 0.93 | 1.4 |
| Compress Air Required(Mpa) | NA | NA |
| Compress Air Consumption(m3/min) | NA | NA |
| Approximate Weight(kg) | 130 | 260 |
| Dimension(mm) | 800*790*1900 | 1140*970*2030 |
