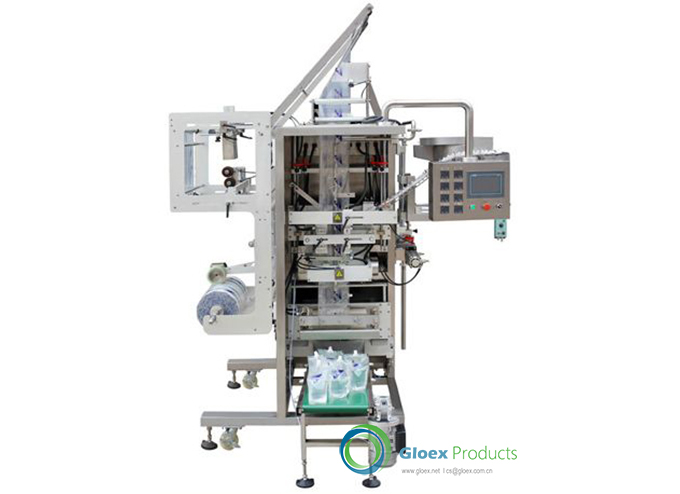

Product Code PP120
This machine is applicable for packing liquid in form of stand-up pouch, with/without spout, or other irregular shaped pouches , with different patterns of sealing, which include processes of packaging film-pulling, liquid dosing, filling, pouch-forming, filling and sealing
This machine is applicable for packing liquid in form of stand-up pouch, with/without spout, or other irregular shaped pouches , with different patterns of sealing, which include processes of packaging film-pulling, liquid dosing, filling, pouch-forming, filling and sealing

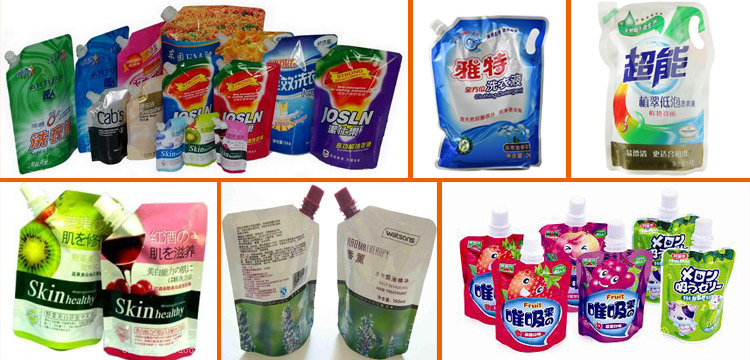

| Issue | Application Description |
| Applicable Pouches | One of the following scenarios can be selected: 1)Stand up Pouch with spout 2)Stand up Pouch without spout 3)Other special design irregular shaped Pouch without/with spout |
| Applicable Products | Normal liquid or viscous liquid such as water, soybean milk, commodity chemicals, etc. |
| Applicable Packaging Material | Laminate Heat sealable packing materials such as OPP/PE, BOPP/OPP/PE, PET/AL etc. |

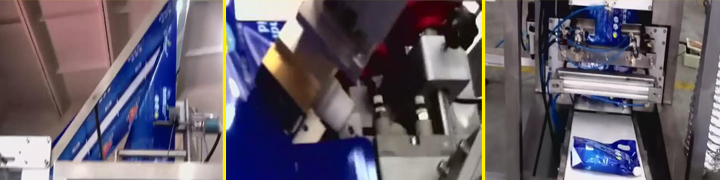

The working processes include: The machine pull laminate packaging film to the stand-up pouch forming devices, and go through the horizontal sealing plate, in the meanwhile, the spout feeding device feed the spout to the specific position, the machine seal the vertical side include the spout welding, then the dosing device dose the product into the pouch, the final step will do the final horizontal sealing and cutting off. Following are the typical working process diagram:

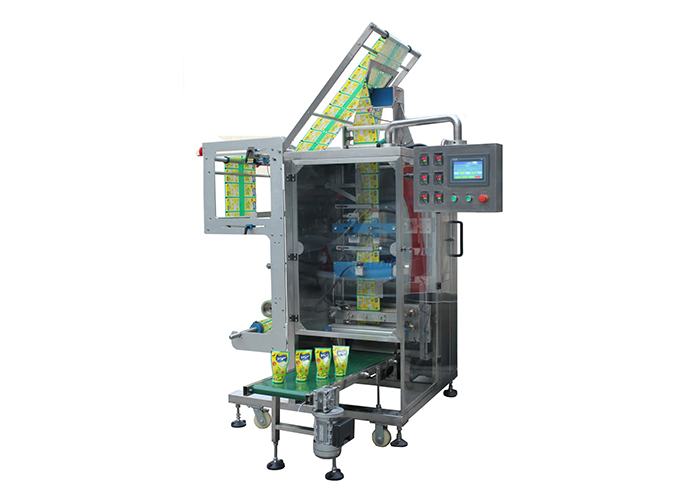

Standard Features
1) Spout stand up pouch form fill seal
2) PLC and Touch Screen HMI control
3) Intelligent PID temperature controller
4) Stainless steel 304 construction
5) Stainless steel 316 for product touching parts:
6) Configure with piston pump and storage hopper
7) Configure with spout sorting and installation system
Optional Features
1) Spout automatic loading device
2) Film Hydrogen peroxide or UV sterilization
3) Spout UV sterilization
4) Protection shield and/or air purification system
Practically, in the market, there is horizontal type stand up pouch form, filling sealing machine, but this vertical type machine its advantages as indicated in the following table:
| No | Issue | Advantage |
| 1 | Dimension | More smaller size of the machine and system, less space requirement |
| 2 | Maintenance | Simple vertical process design other than 20 horizontal workstations, less maintenance |
| 3 | Stability | Simple design, less component and process, enable more stable operation |
| 4 | Price | 1/2 price of horizontal type stand up pouch packaging machine/system |
| Catalogue/1U-xxxxx | L500 |
| Packaging Film Width(mm) | 400-650 |
| Packaging Range(ml) | 200-1200 |
| Packing Speed (Pouches/min) | 10-25 |
| Filling Accuracy | +/-1.5% |
| Power Consumption(kW) | 2.0-4.8 |
| Power Requirement | 220V 50/60HZ |
| Compress Air Requirement(Mpa) | 0.65 Mpa |
| Compress Air Consumption(m3/min) | 1.0m3/min |
| Approximate Net Weight(kg) | 650 |
| Dimension(mm) | 2600*1100*2600 |
Following is the playlist link for this machine on our Youtube site
https://www.youtube.com/watch?v=kup6v5HrGXE&list=PLoI3FEOZ6j4NTVXT94fZmoBpNqaJK4AtF
Please contact us for more information
