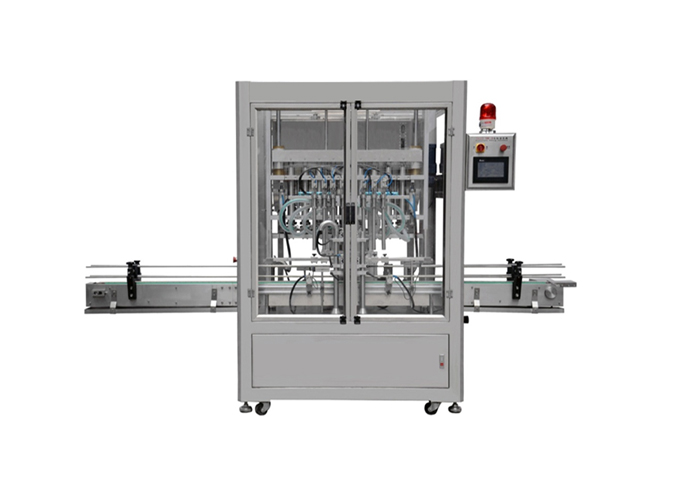

Product Code: PP211B

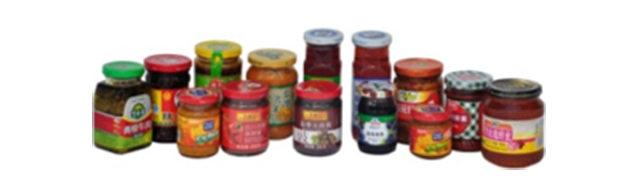

This machine is applicable forthe filling of various liquids, liquid creams and sauces with soft particles , for instance , honey, chili sauce, tomato sauce, pearl milk tea, coconut juice, orange juice, ketchup, mayonnaise etc
This machine is applicable forthe filling of various liquids, liquid creams and sauces with soft particles , for instance , honey, chili sauce, tomato sauce, pearl milk tea, coconut juice, orange juice, ketchup, mayonnaise etc
Standard Features
1) Apply for filling of viscous liquid, pasty products, or sauces with soft particles
2) Frequency converting motor driven
3) Precision piston cylinder manufacturing technology, enable high filling accuracy and makes seal ring more durable;
4) PLC & touch screen HMI Control
5) Stainless steel 304 construction for main parts
6) Stainless steel 316 construction for product touching parts
7) Tool less for different container change over
8) High Precision and durable piston cylinder and seal design
9) Cleaning drain trough design, keep clean environment
10) No container no filling interlock
11) Quick connecting joints for pipes
12) One key instantly set up the filling volume, no need to adjust individually
Optional Features
1) Stainless steel304 for product touching parts
2) Double Lanes
3) Servo motor driven
Technical Specification
| Type 3B-xxxx | 8-X |
| Volume of Piston Pump | 120/250/500/1000/2500/5000 ml |
| Filling Heads | 8 |
| Lanes | 1 |
| Filling speed | 30-60 BPM |
| Filling precision | ≦±1 liquid≦±2 liquid cream |
| Power | AC380V, 3P, 50/60Hz3KW |
| Weight | 950kg |
| Pressure range | 0.4-0.6Mpa |

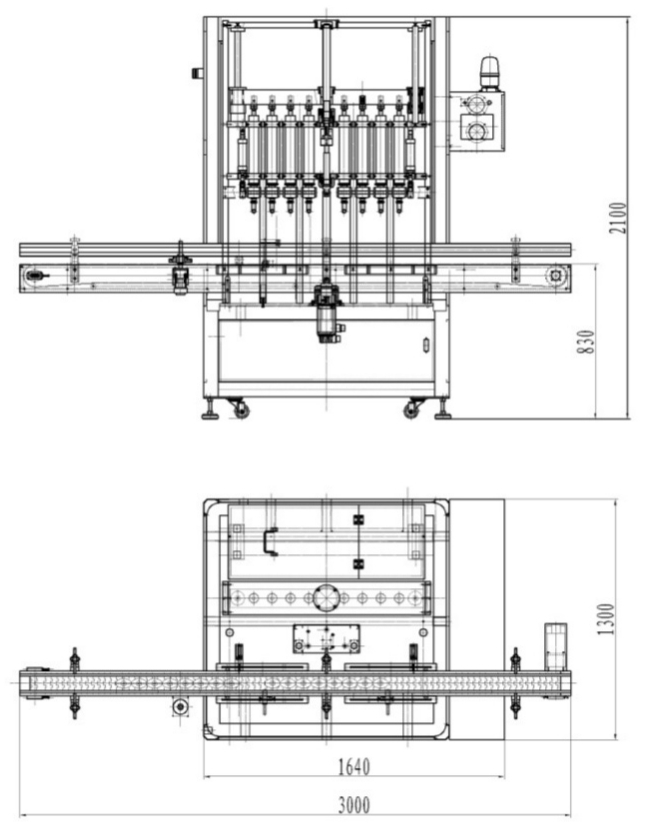

| Host dimension | 1640×1315×2100mm |

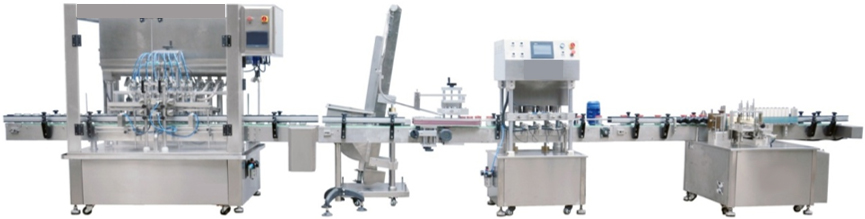

Typical Filling Line 1
1) 8-head pneumatic piston filling machine
2) Automatic capping and vacuum cap-screwing sealing machine
3) Paste labeling machine
If need more support, please contact us at: cs@gloex.com.cn
