Product Code: PP316C

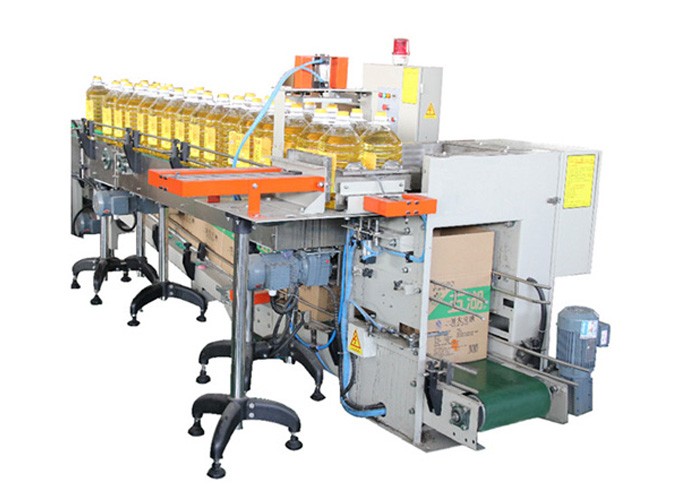

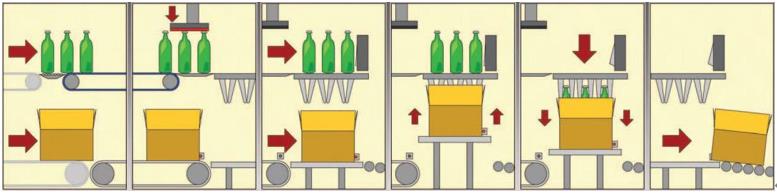

It is applicable for drop off loading products from top into corrugated cases, tray, crates.
Applicable for beer, beverage, food, chemical, pharmaceutical industries of the packing process, etc.
It is applicable for drop off loading products from top into corrugated cases, tray, crates.
Applicable for beer, beverage, food, chemical, pharmaceutical industries of the packing process, etc.
Applications:

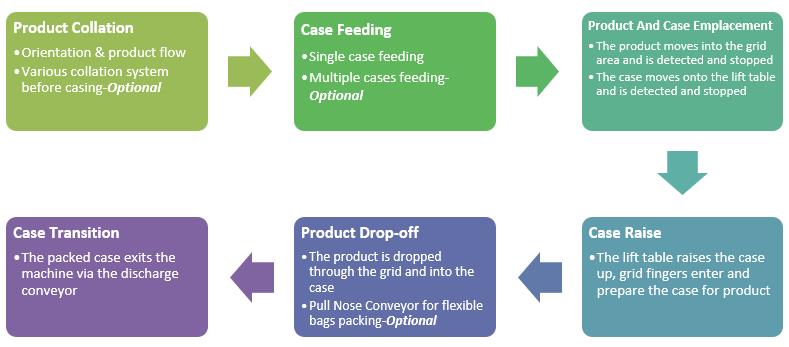

Various Collation System:
Various Packing Patterns:
A variety of packing patterns that can be customized, depending on user's needs:
Standard Features
1) Painted heavy duty welded tubular steel construction design
2) Simple drop-in lane spacers
3) Simple changeover system
4) Fully-interlocked guards
5) Long-lasting plastic grid fingers position cases and partitions to ensure proper bottle placement
Optional Features
1) Multi-lane diverter
2) Non-round bottles laner device
3) Infeed extension
4) Customized products collation systems for different products

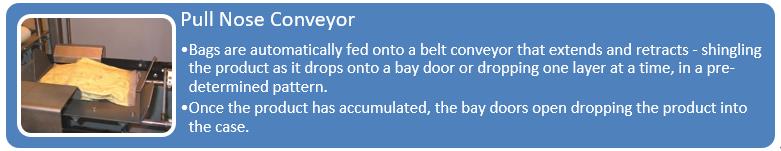

5) Pull Nose Conveyor for flexible bags packing
6) Customized packing patterns
7) Stainless steel framework
8) Spare part kits

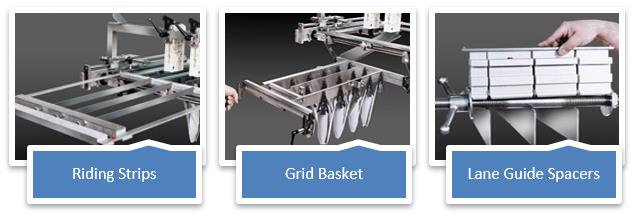

Changing parts
Flexible bags packing

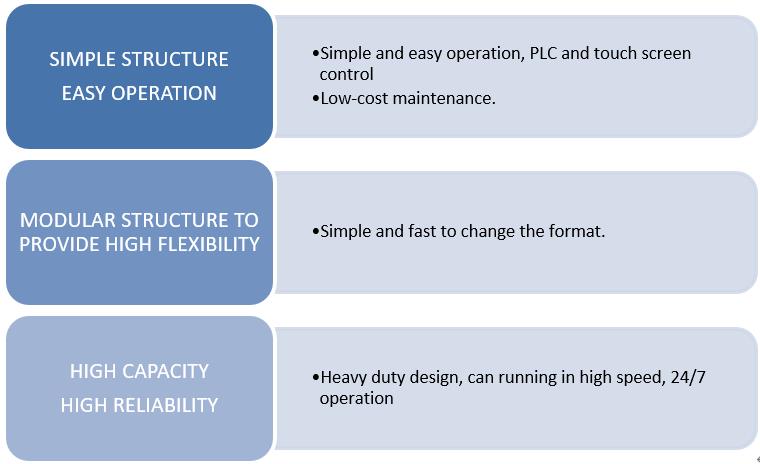

Practically, the advantages as indicated as following:
Type | ZX-04 |
Power Supply | 220V/380 50/60HZ 1KW |
Speed | 20-25 cases / min |
Air Supply | 6-7 bar |
Dimensions | 1600*1500*1850 (L*W*H) |
If need more support, please contact us at: cs@gloex.com.cn
