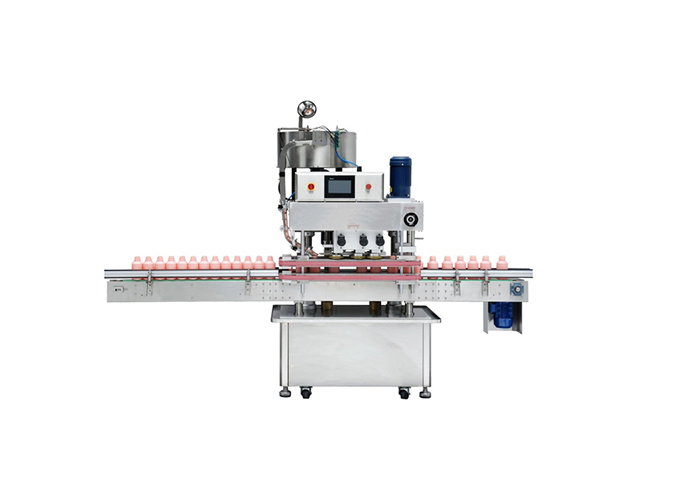

Product Code: PP198B
This machine is applicable for tightening threaded caps. integrated with the Elevator-style Cap sorter, Vibratory or Centrifugal Sorting Bowl optionally,
1) It is used for cap screwing of round bottles, square bottles or oblate bottles.
2) It can be used on the independent rack and is suitable for cap screwing at large scale production lines of customers.
3) It applies to customers requiring replacement of different specifications of bottles.
This machine is applicable for tightening threaded caps. integrated with the Elevator-style Cap sorter, Vibratory or Centrifugal Sorting Bowl optionally,
1) It is used for cap screwing of round bottles, square bottles or oblate bottles.
2) It can be used on the independent rack and is suitable for cap screwing at large scale production lines of customers.
3) It applies to customers requiring replacement of different specifications of bottles.
Standard Features
1) Advanced PLC and touch screen control
2) Mainly 304 stainless steel construction
3) 6 spindles configuration
4) Vibratory bowl cap sorter
5) Frequency converting driven
6) Heavy duty casters standard
7) No change of parts needed for a wide range of containers, such as round, square or oblate shape
8) No change of parts needed for a wide range of pre-threaded caps
Optional Features
1) Elevator type waterfall cap sorter
2) Vertical wheel cap sorter
3) Centrifugal bowl sorter
4) 8 spindle model
1) Vacuum differential pressure equal level filling
2) Bubbling proof and dripping proof
Technical Specification
Type | XG-120-6 |
Cap Diameter | 19-55mm |
Bottle Diameter/Width | 23-100mm |
Bottle Height | 45-320mm |
Capping Speed | 30-80 bottles/min subject to the type of container or cap |
Power Supply | AC220V 50/60Hz 1.0 kw |
Weight | 600kg |
Compressed Air Supply | 0.4-0.6Mpa |

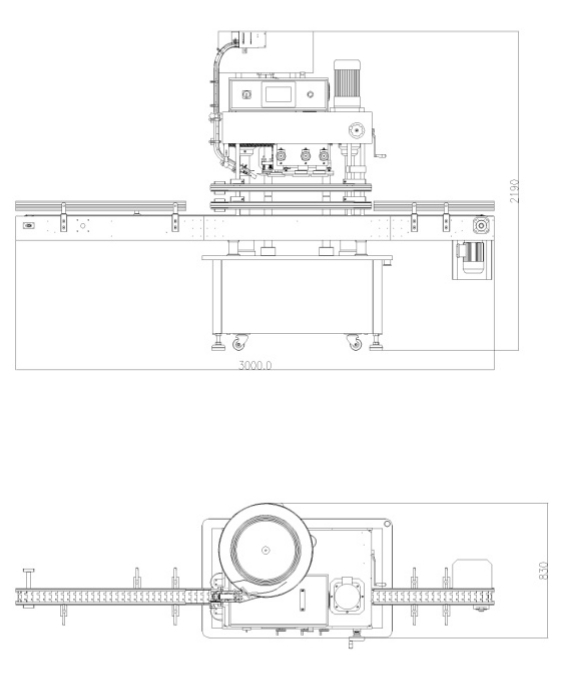

Dimension | 3000×830×2190mm |

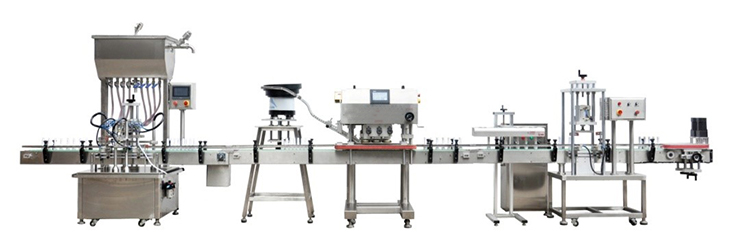

Typical Filling Line
1) Full-automatic 8-head gravity filling machine
2) Automatic inline spindle capping machine with vibratory bowl sorter
3) Air-cooled aluminum foil sealing4) Single-head cap-pressing machine
