Product Code : P172

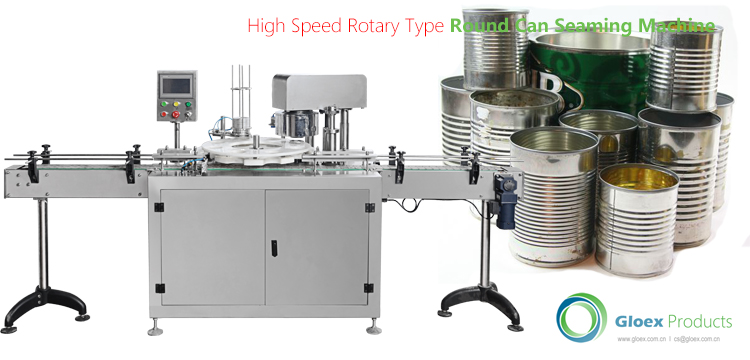

This machine is applicable for seaming the round can which is made of aluminum, tinplate , PET, or paper and the other kinds of can, configure with synchronization belt ,mounted the sealing motor in lower control box, enable low vibration and stable seaming quality
This machine is applicable for seaming the round can which is made of aluminum, tinplate , PET, or paper and the other kinds of can, the detail application description as following table:
| No | Issue | Application Description |
| 1 | Applicable Containers | Round shape can, or jar which are made of hard materials, like aluminum, tinplate and the other kinds of metal, or cylinder cardboard tubes and hard plastic materials. |
| 2 | Applicable Lids | lids which are made of aluminum, tinplate and the other kinds of metal, etc. |

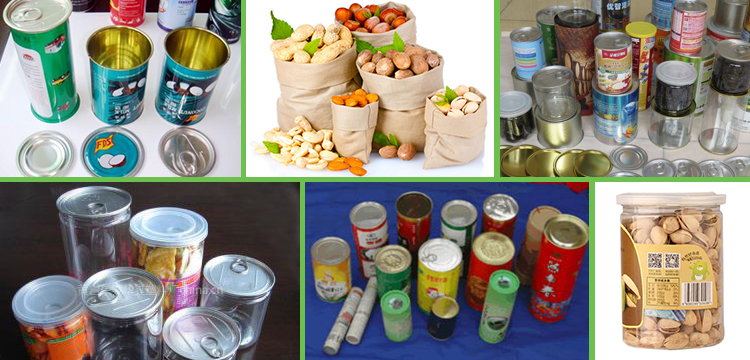

Following are the reference style of containers and applicable lids
The working processes include: Feed the container by the conveyor, and the machine pre-cap the lid on the can to be seamed. The can moves to the specific position of the rotary plate and lift to the seaming head, the machine will seam the container automatically. Following are the typical working process diagram:
Standard Features
• Apply for various size of round shaped can seaming, like tinplate, aluminum, PET or other plastic cans
• Frame & structure : painted carbon steel
• Surface of machine: stainless steel 304
• Seamer : durable alloy steel, reinforce the seaming quality
• Can lifting ,fixing and seaming , enable stable seaming quality
• By changing of different size kits, able to seaming different size cans
• PLC and Touch Screen control, easy for adjustment , parameter setting up and trouble shooting
• No can no lidding
• No lidding no seaming, avoid to damage the seaming heads

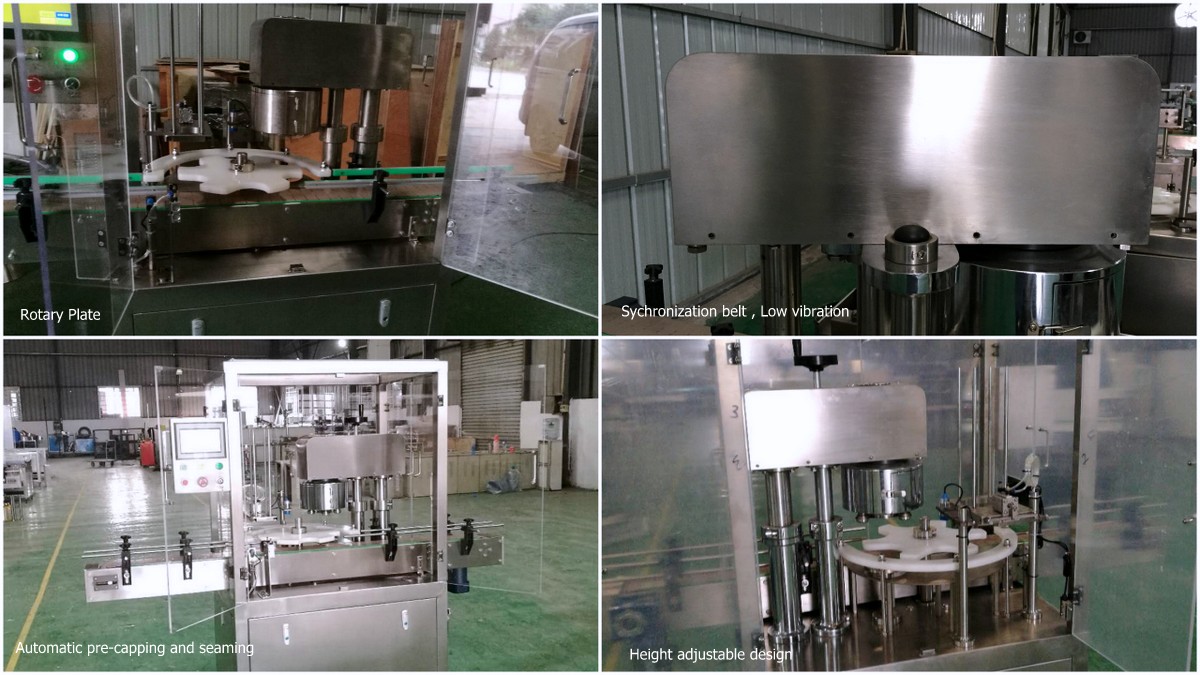

• Apply synchronization belt other than direct motor driving, minimize the vibration of operation , and enable more stable seaming performance
• Lubricating centralization design

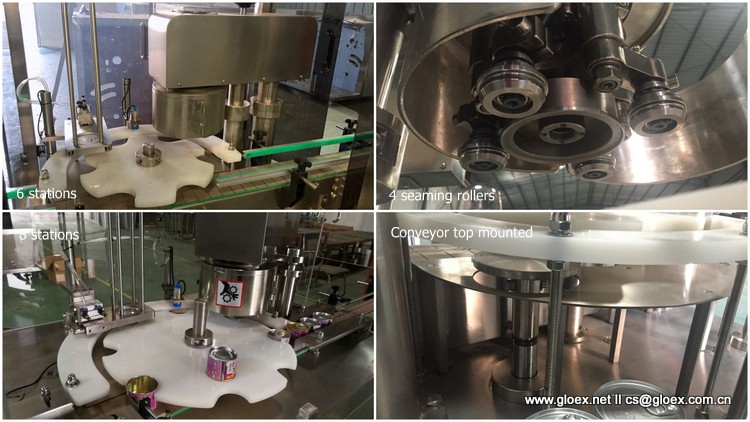

• 4 seaming rollers
• Tool free for can height changing adjustment
Optional Features
• Integration of filling device
• Double rotating stars
• Titanium coating seaming roller
• Protection shield
• Additional Interlocks
• Conveyor top mounted
Frequency converting driving, seaming speed adjustable for different cans

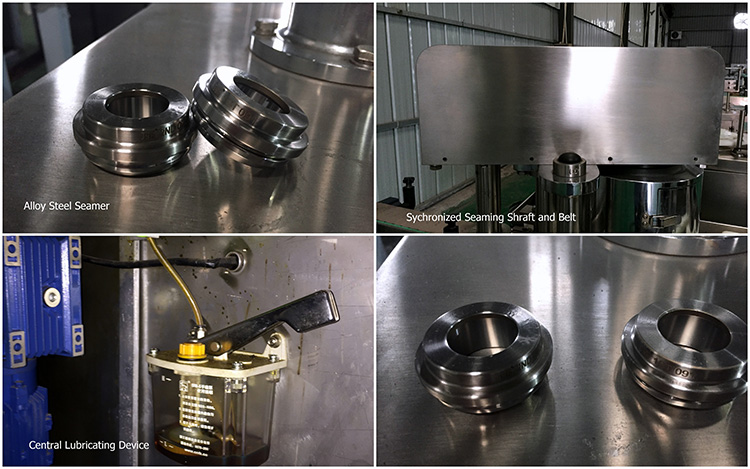

Driven motor mounted in lower control box, synchronizing with seaming shaft and belt, result in low vibration, low noise and stable seaming quality
Lubricating centralization design, easy for maintenance
Alloy steel seam rollers, longer operation life, and high strength seaming
Tool free for can height changing adjustment
| Catalogue 2W-xxxxx | FGJ100 | FGJ130 |
| Type **1) | Non-Rotating | Non-Rotating |
| Automation | Automatic | Automatic |
| Number of Seaming Head | 1 | 1 |
| Control Method | PLC & Touch Screen HMI | PLC & Touch Screen HMI |
| Speed Adjustable | Adjustable | Adjustable |
| Container Moving Method | Rotary Plate | Rotary Plate |
| Height of Container | 60-190mm | 60-190mm |
| Diameter of Caps | 52.5-105 mm | 70-130 mm |
| Seaming Speed **2) | 30-60 cans/ Min | 30-60 cans/ Min |
| Power Requirement(V/Hz) | AC 220 V 50/60HZ | AC 220 V 50/60HZ |
| Electricity Consumption(kW) | 1.2 | 1.5 |
| Lid Auto-Pre-capping | Yes | Yes |
Approximate Weight(Net)(kg) | 500kg | 700kg |
| Dimension(mm) | 2000*650*1500 mm | 2800*800*1500 mm |
Note
**1) Rotating means the container rotating during seaming
**2) The seaming speed is adjustable according to the operation condition like products inside , type of can

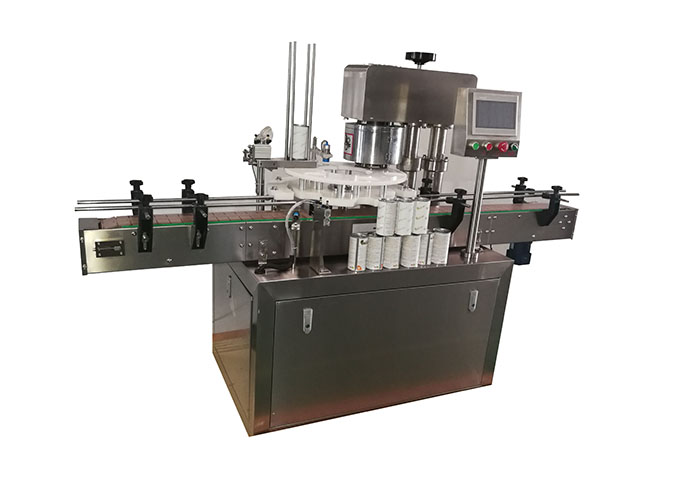

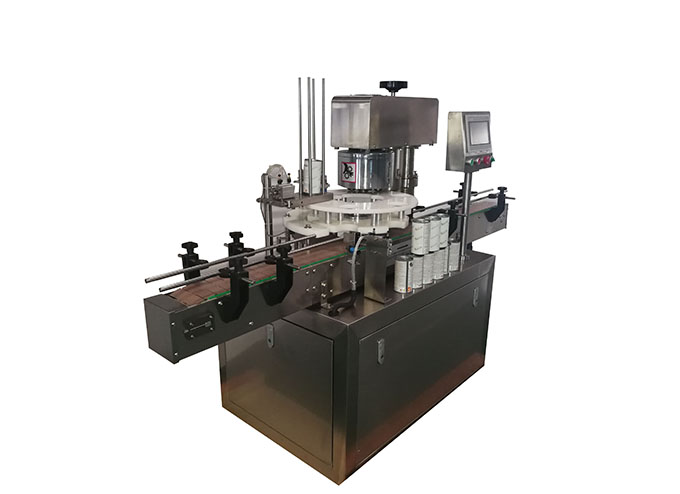

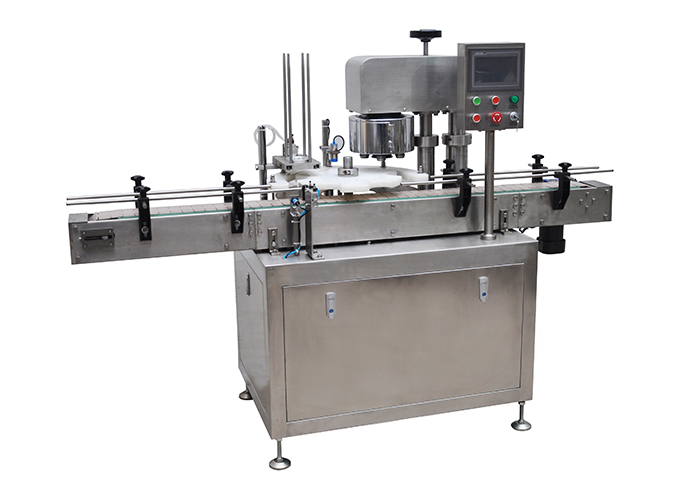

Reference Photos
Following is the related video playlist on our Youtube site
https://www.youtube.com/playlist?list=PLoI3FEOZ6j4NgZIyekgYSOZqvmOf07JiQ
More information, please contact us for support
